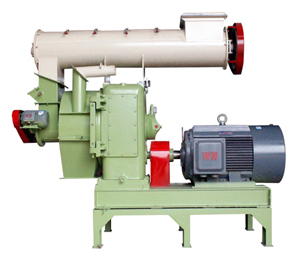

If you are considering setting up a complete biomass pellet line, we strongly recommend you the GEMCO Ring Die Pellet Mill; it is the perfect solution for your pelletizing needs. In a complete biomass pellet line, a high quality and efficient pellet mill with a proper ring die is quite important, it is the main machine of the complete biomass pellet line. GEMCO ring die pellet machine is such a reliable machine; it is made from 4Cr13 high-chromium alloy, processed by high temperature vacuum quenching, and there are these two models: GEMCO ring die pellet mill with model 420 and GEMCO ring die pellet mill with model 508. The average production capacity is 800-1500 tons during the service lifetime of a ring die, whereas the maximum capacity can reach to 1800 tons. In addition, GEMCO ring die pellet mill with model 420, 508 separate reduce the power to 90kw and 110kw compared to 132kwof traditional ring die pellet mill, which ensures a stable performance and the same pellet output.

The features and advantages of GEMCO ring die pellet mill

• The main driver uses high-precision gear transmission rather than belt transmission, which can increase 20% transmission efficiency.
• Bearing and oil seal are imported from German FAG, so the NPM ring die pellet mill is high efficiency, stability and low noise.
• The inside serpentine spring coupler conforms to international standard which is compact, safe and less machinery failure.
• The main working parts use strengthened high-chromium alloy and heat treatment to meet the requirements for pressing hard material, such as hard wood species.
• GEMCO ring die pellet mill applies 10 patented innovation technologies, solving the problem of die cracks, low output and short service time.
• You can lubricate the machine while it is still working with the special lubrication system. An air cooling system is also equipped.
• Low energy consumption and stable output.

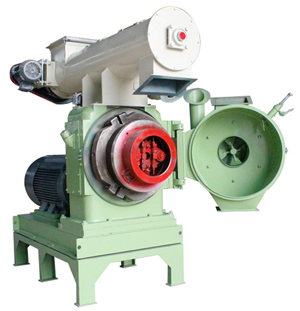

GEMCO ring die pellet mill with model 508 and 420

Model	508	420
Capacity (t/h)	1.5-5	1-1.5
Size (W x L x H)	1200 x 2990 x 2410	1100 x 2600 x 2200
power (kw)	110	90
